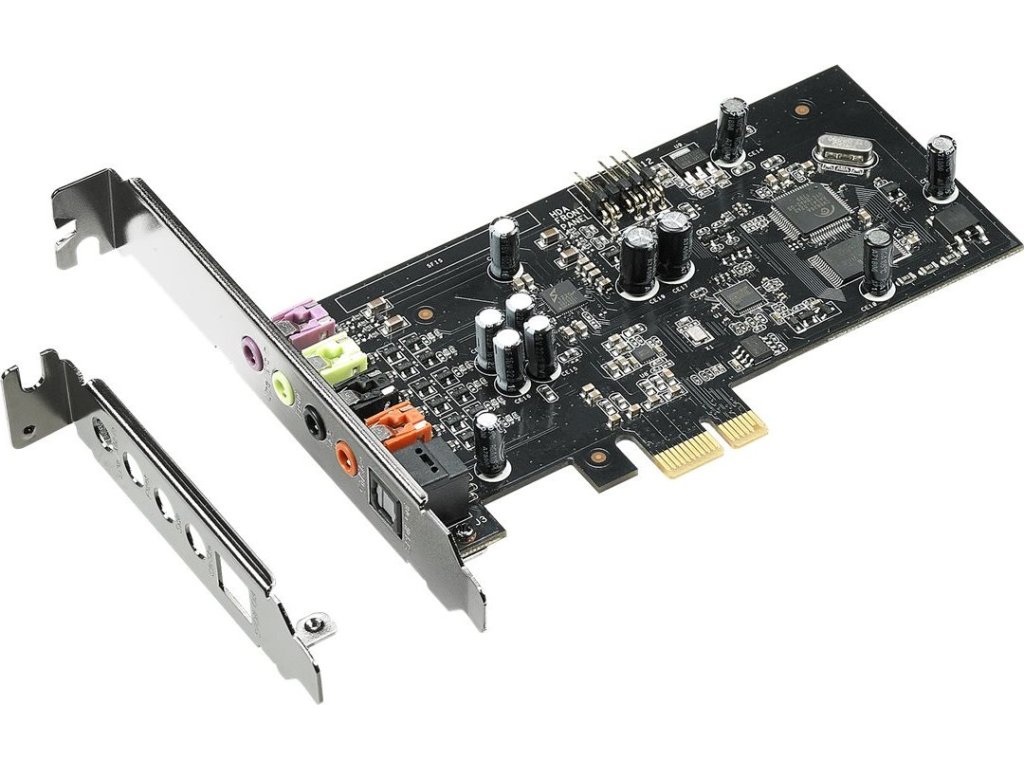

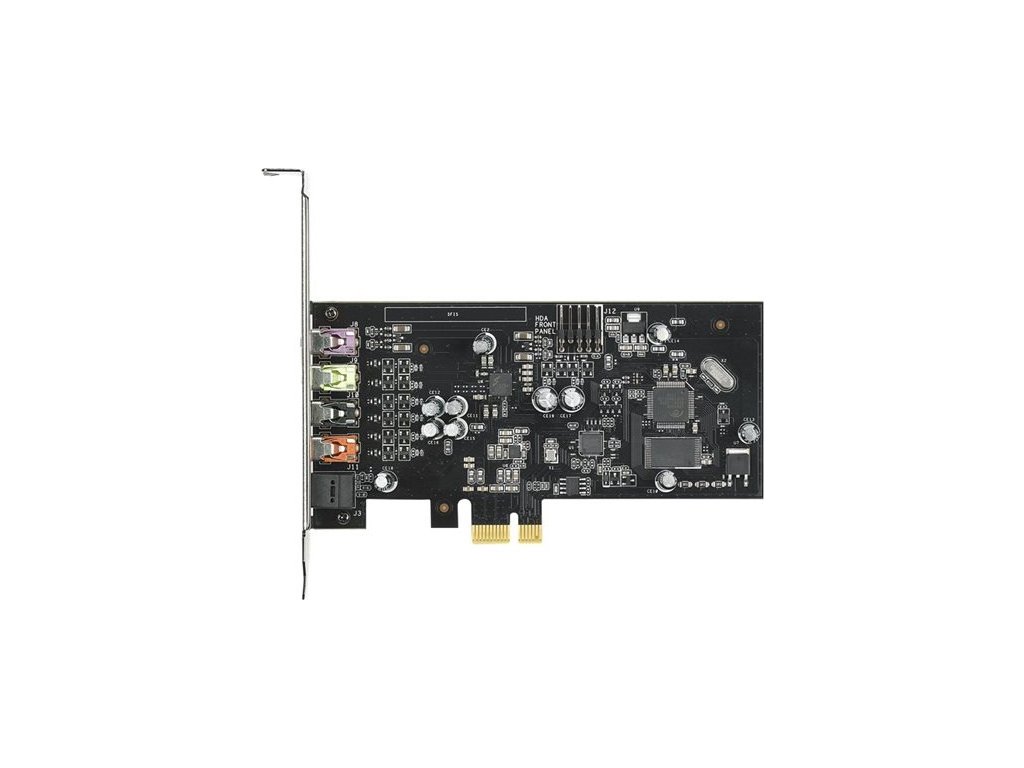

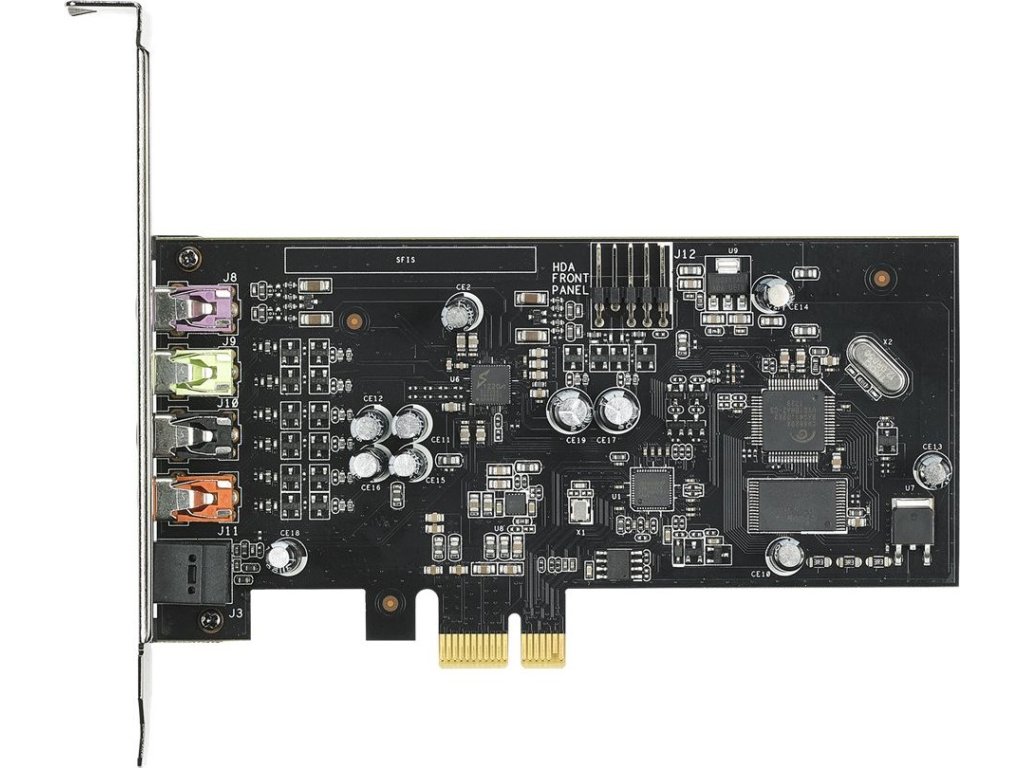

ASUS zvuková karta XONAR SE, sound card - PCI Express

Podrobný popis

Rozhraní: PCI Express

Audio výkon:

*Výstup Signal-to-Noise Ratio (A-Weighted): 116 dB

*Vstup Signal-to-Noise Ratio (A-Weighted): 110 dB

*Výstup THD+N at 1kHz (Front-out): 0.00251 %(-92 dB)

*Vstup THD+N at 1kHz: 0.00251 %(-92 dB)

*Frekvence odezvy (-3dB, 24bit/192KHz): 10 Hz do 87 KHz

Chipset: Audio Processor: C-Media USB2.0 6620A High-Definition Sound Processor (Max. 192KHz/24bit)

Digital to analog converter: Realtek S1220A (120dB SNR, Max. 192KHz/24bit)

Sample Rate a rozlišení:

*Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16bit/24bit

*Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16bit/24bit

*S/PDIF Digital Output: 44.1K/48K/96K/192KHz @ 16bit/24bit

*ASIO 2.2 Driver Support: 44.1K/48K/96K/192KHz @ 16bit/24bit

Konektivita:

*Analog Output: 3 x 3.5 mm jack (1/8") (Front out/Side out/Rear out)

*Analog Input: 1 x 3.5 mm jack (1/8") (Line-in/Mic-in)

*Digital: 1 x S/PDIF out (1 x Optical (Toslink))

*Smart Volume Normalizer™

*Xear 3D™ Virtual Speaker Shifter

*Xear Surround™

*Magic Voice™

Operační systémy

*Windows® 10

*Windows® 8.1

*Windows® 7

Více informací na webu výrobce: https://www.asus.com/us/Sound-Cards/Xonar-SE/overview/
