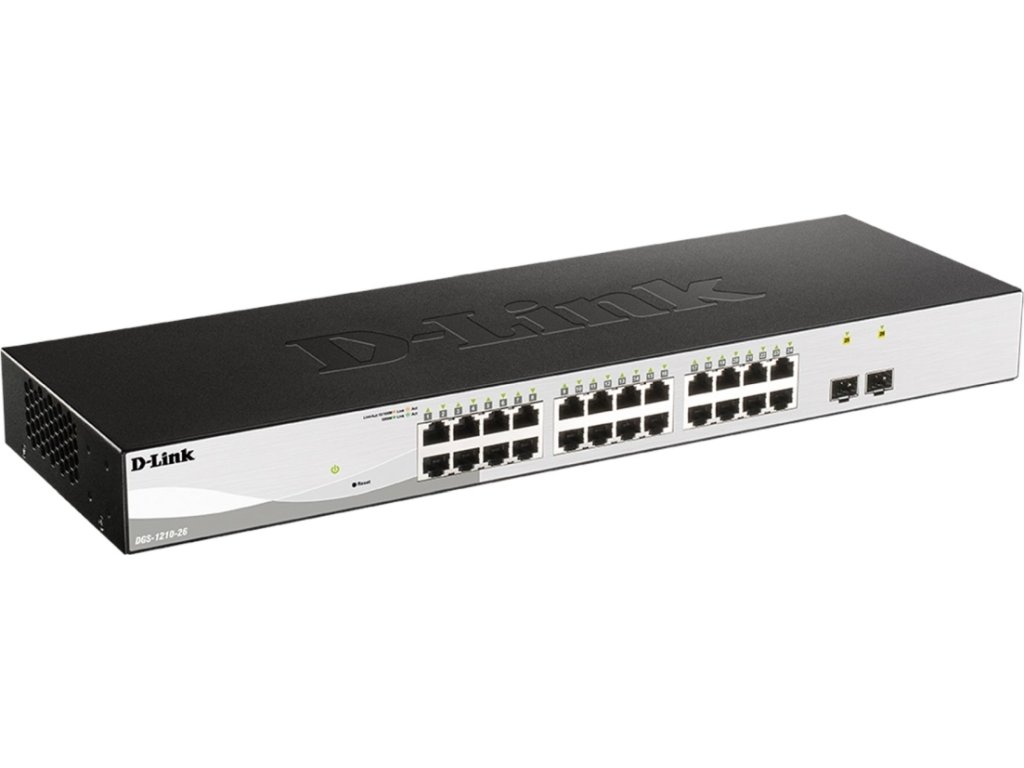

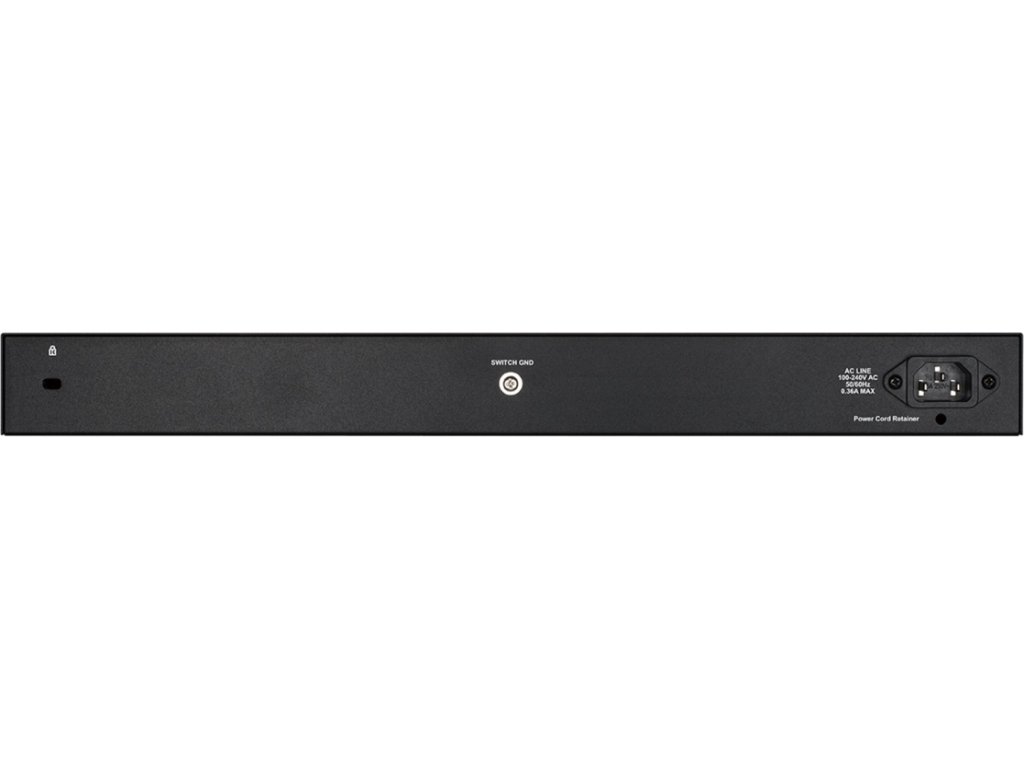

D-Link DGS-1210-26 26-port Gigabit Smart+ Switch, 24x GbE, 2x SFP, fanless

Podrobný popis

D-Link DGS-1210-26 je výkonný 26-portový Gigabit Ehernet Smart Managed switch bez větráků, vhodný pro přístupové Enterprise sítě a pro SMB. Je osazený 24 porty 10/100/1000M RJ-45 a dvěma 100/1000M SFP sloty s podporou 100M SFP a Gigabit SFP transceiverů. Správa přepínače je z intuitivního webového rozhraní nebo pomocí SNMP příkazů. K dispozici je také bezplatná utilita D-Link Network Assistant (DNA) a centrální NMS plaforma D-View7. Kompaktní sada Telnet CLI příkazů umožňuje základní nastavení přepínače (nastavení IP adresy, hesla, reset, reboot, ping, upgrade FW, nahrání/zálohování konfigurace, show, debug).

Kromě pokročilé sady L2 funkcí, VLAN, QoS, AAA, ACL a bezpečnostních funkcí je podporovaný také L3 statický routing (max. 4 IP Interface, 124/50 IPv4/IPv6 záznamů). Funkce Voice VLAN detektuje připojení IP telefonů a přiřazuje je automaticky do samostatné VLANy s vyšší prioritou. Unikátní Surveillance režim umožňuje detekovat ONVIF kompatibilní zařízení (IP kamery, NVR) a automaticky je přiřadit do oddělené video-VLAN a zobrazit topologii sítě ve webovém rozhraní. Výrazně se tak zjednodušuje a urychluje nasazení a správa firemní sítě a IP kamerových systémů.

Specification:

Interfaces: 24x 10/100/1000BASE-T and 2x 100/1000 Mbps SFP ports

Port standards:

- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

- IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic

- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)

- IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic

- IEEE 802.3az Energy Efficient Ethernet (EEE)

- IEEE 802.3x Flow Control

Duplex Mode:

- Full/Half-duplex for 10/100 Mbps

- Full-duplex for 1000 Mbps

Media Interface Exchange: Auto MDI/MDIX adjustment for all twisted-pair ports

Switching Capacity: 52Gbps

MAC Address table: 8K entries

Static MAC Addresses : 256 entries

Maximum 64 Byte Forwarding Rate: 38,7 Mbps

Packet Buffer Memory: 4,1 Mbits

CPU Memory: DDR3 128 MB

Flash Memory: 32 MB

Internal Power Supply 100 to 240V AC

Maximum Power Consumption: 15,11W/240V

Standby Power Consumption: 5,06W / 240V

Acoustics: 0 dB (fanless)

Heat Dissipaion: 51.57 BTU/hr (240V)

Operating Temperature: -5 to 50°C

Storage Temperature: -20 to 70°C

Operating / Storage Humidity: 0% to 95% relative humidity

Dimensions (L x W x H): 440 x 140 x 44 mm

Weight: 2,06 kg

MTBF: 1,082,534 hours

L2 Features:

MAC Address Table: 8K entries

IGMP Snooping

- IGMP v1/v2 Snooping

- IGMP v3 awareness

- Supports 256 IGMP groups

- Supports at least 64 static multicast addresses

- IGMP per VLAN

- Supports IGMP Snooping Querier

MLD snooping v1/v2 (256 groups)

Loopback Detection

802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group

LLDP / LLDP-MED

Jumbo Frame: Up to 10,000 bytes

Spanning Tree Protocol: 802.1D STP, 802.1W RSTP, 802.1s MSTP

Flow Control: 802.3x Flow Control, HOL Blocking Prevention

Port Mirroring: One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both

Multicast Filtering: Forwards all unregistered groups, Filters all unregistered groups

Configurable MDI/MDIX

VLAN:

802.1Q

VLAN Group: Max. 256 static VLAN groups

Configurable VID from 1 - 4094

Asymmetric VLAN

Auto Voice VLAN: Max. 10 user-defined OUI, Max. 8 default OUI

Auto Surveillance VLAN

Quality of Services (QoS):

802.1p Quality of Service

8 queues per port

Queue Handling: Strict, Weighted Round Robin (WRR)

Bandwidth Control: Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)

QoS based on:

- 802.1p priority queues

- DSCP

- MAC address

- EtherType

- IP address

- Protocol type

- ToS

- IP preference

- IPv6 Traffic Class

- TCP/UDP port

L3 Features:

IP interface: Supports 4 interfaces

IPv6 Neighbor Discovery (ND)

Static routing: 124 IPv4 static route entries, 50 IPv6 static route entries

Access Control List (ACL):

Max. 50 access lists

Max. 768 rules shared by IPv4, MAC, and IPv6

Each rule can only be associated with a single port

ACL based on

- MAC address

o 802.1p priority mask

o VID mask

o Source/destination MAC address mask

o EtherType mask

- IP address

o Source/destination IP address mask

o DSCP mask

o Protocol type mask

o TCP/UDP port number mask

- IPv6 address

o Source/destination IP address mask

o DSCP mask

o Protocol type mask

o TCP/UDP port number mask

o IPv6 traffic class mask

Security:

Broadcast/Multicast/Unicast Storm Control

D-Link Safeguard Engine

Traffic segmentation

SSH v2

TLS v1.0

DoS attack prevention

802.1X Port-based Access Control

Port Security: Supports up to 64 MAC addresses per port

ARP Spoofing Prevention: Max. 127 entries

DHCP Server Screening

IP-MAC-Port Binding (Smart Binding)

- ARP Inspection: Max. 256 entries

- IPv4 Inspection: Max. 127 entries

- IPv6 Inspection: Max. 63 entries

- DHCP Snooping: Max. 512 entries

AAA 802.1X Authentication:

Supports local/RADIUS database

Supports port-based access control

Supports EAP, OTP, TLS, TTLS, PEAP

Max. 128 entries when using local database

IPv6 RADIUS server

Support MD5 authentication

OAM

Cable Diagnostics

Factory Reset

Management:

Web-based GUI

D-Link Network Assistant Utility

Compact CLI

Telnet Server

TFTP Client

Configurable MDI/MDIX

SNMP

Supports v1/v2c/v3

SNMP Trap

Backup/upgrade firmware

Smart Wizard

Upload/download configuration file

BootP/DHCP Client

System Log: Max. 500 log entries

SNTP

ICMP v6

IPv4/v6 Dual Stack

DHCP Auto Configuration

Time setting

RMONv1

Trusted host

Dual image

Dual configuration

Green V3.0 Technology:

Power Saving by:

- Link Status

- System hibernation

- Port shut off

- Cable length detection
