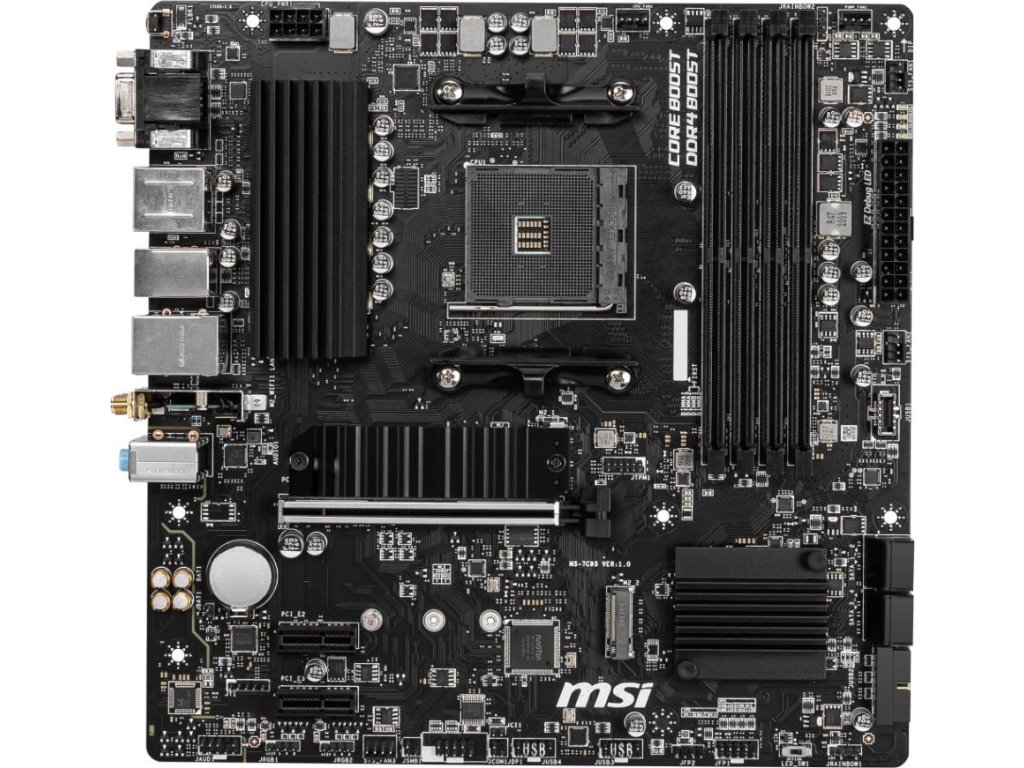

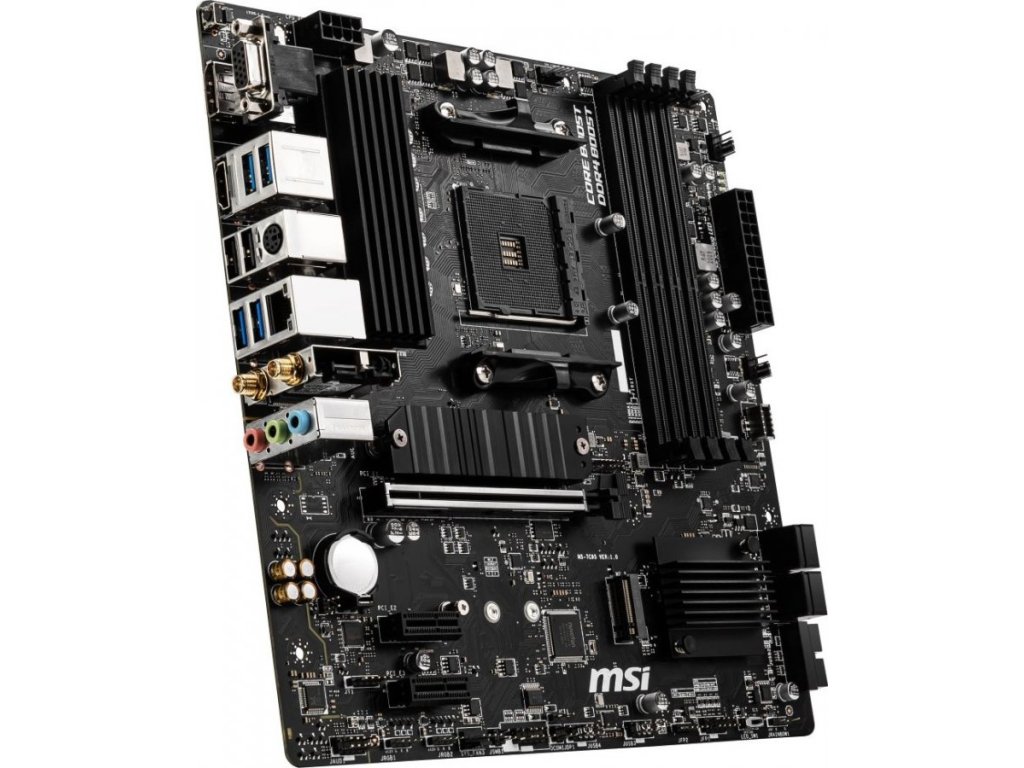

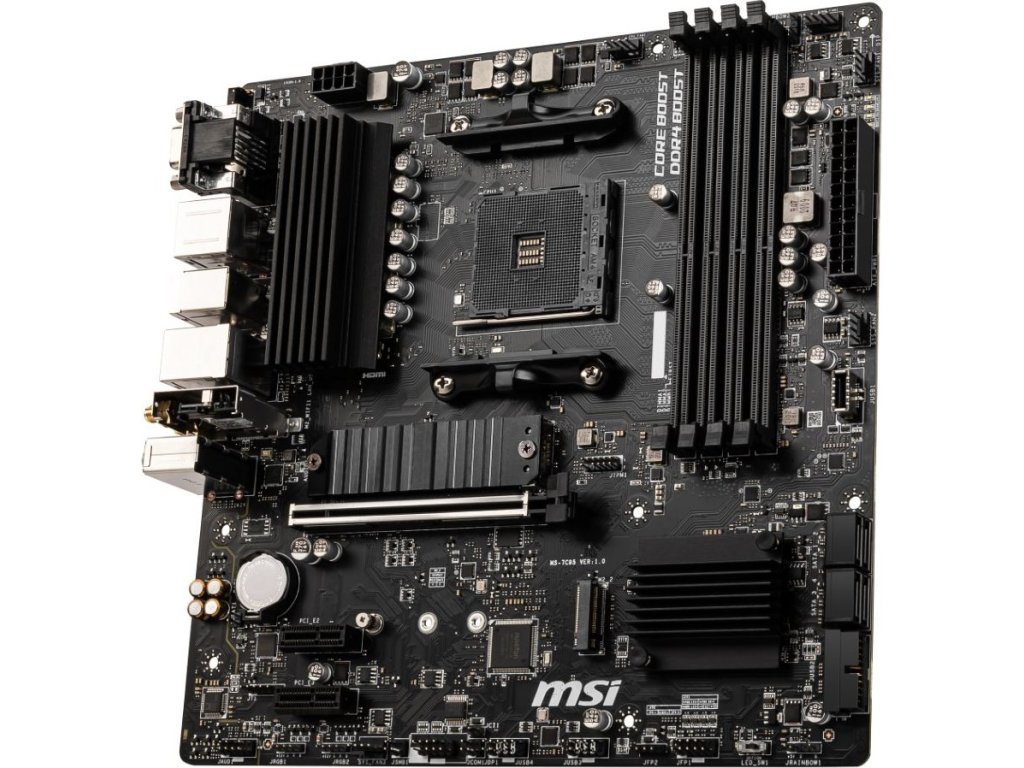

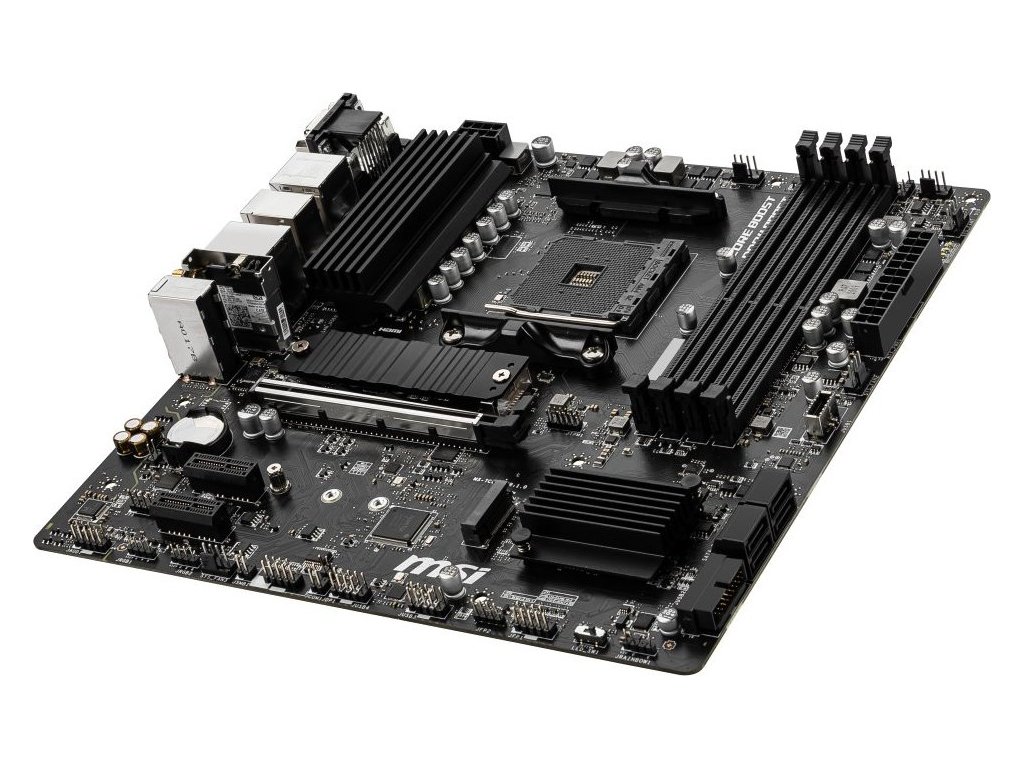

MSI MB Sc AM4 B550M PRO-VDH WIFI, AMD B550, 4xDDR4, VGA, mATX

Podrobný popis

Chipset: AMD B550

Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm)

Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

Patice procesoru: AM4

Pozice na paměti: 4x DDR4

Podpora pro paměti:

*Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

*Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

*Dual channel memory architecture

*Supports non-ECC UDIMM memory

*Supports ECC UDIMM memory

*Supports un-buffered memory

Grafické výstupy: na základě procesoru

*1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz

*1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

*1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

Zvuková karta:

*Realtek® ALC892 Codec

Síťová karta:

*1x Realtek® 8111HN Gigabit LAN controller

*Intel® Wireless-AC 3168

*Bluetooth 4.2

RAID řadič:

*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozšiřující sloty:

*1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

*2x PCIe 3.0 x1 slots

SATA:

*4x SATA 6Gb/s ports

M.2:

*2x M.2 slots (Key M)

USB:

*zadní USB porty ( celkem 6 )

*2x USB 2.0 ports

*4x USB 3.2 Gen 1 5Gbps Type-A ports

*přední USB porty ( celkem 7 )

*1x USB 3.2 Gen 1 5Gbps Type-C port

*2x USB 3.2 Gen 1 5Gbps ports

*4x USB 2.0 ports

Interní porty:

*1x 24-pin ATX main power connector

*1x 8-pin ATX 12V power connector

*4x SATA 6Gb/s connectors

*2x M.2 slots (M-Key)

*1x USB 3.2 Gen 1 5Gbps Type-C port

*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

*1x 4-pin CPU fan connector

*1x 4-pin water-pump fan connector

*3x 4-pin system fan connectors

*1x Front panel audio connector

*2x System panel connectors

*1x Serial port connector

*1x Chassis Intrusion connector

*2x 4-pin RGB LED connectors

*2x 3-pin RAINBOW LED connectors

*1x TPM module connector

*1x Clear CMOS jumper

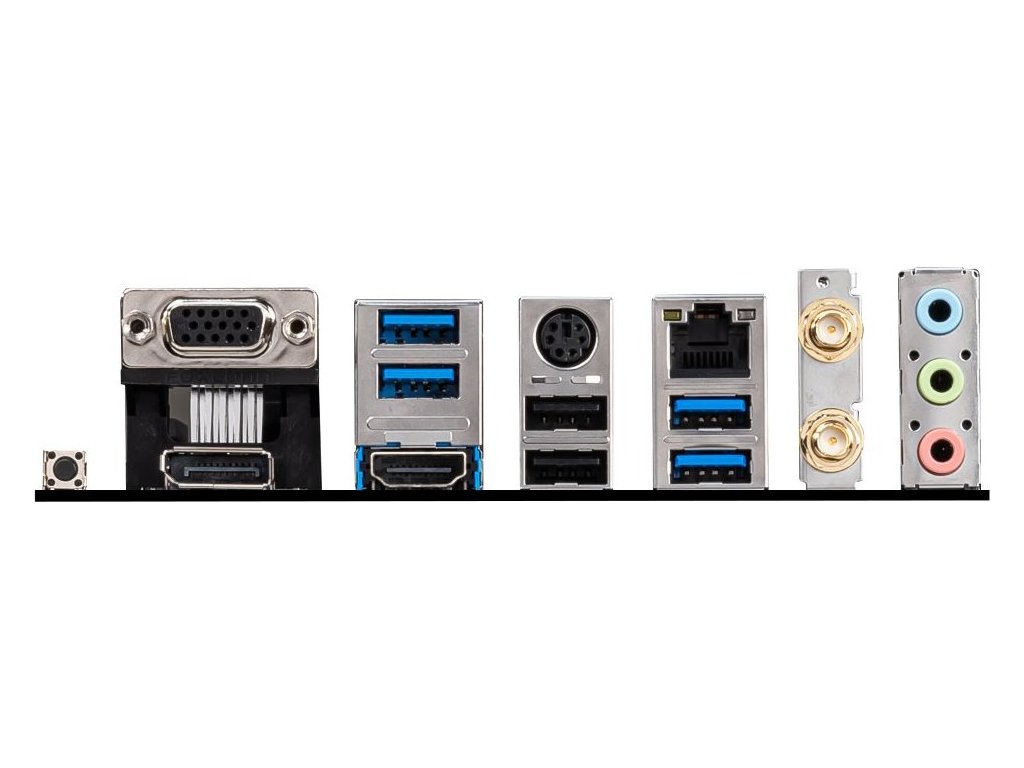

Externí porty:

*VGA

*PS/2 Keyboard / Mouse

*1x LAN

*Flash BIOS Button

*DisplayPort

*HDMI

*2x USB 2.0

*4x USB 3.2 Gen 1 5Gbps Type-A

*Wi-Fi Antenna connectors

*3x Audio jacks

Stránka výrobce: https://www.msi.com/Motherboard/B550M-PRO-VDH-WIFI
