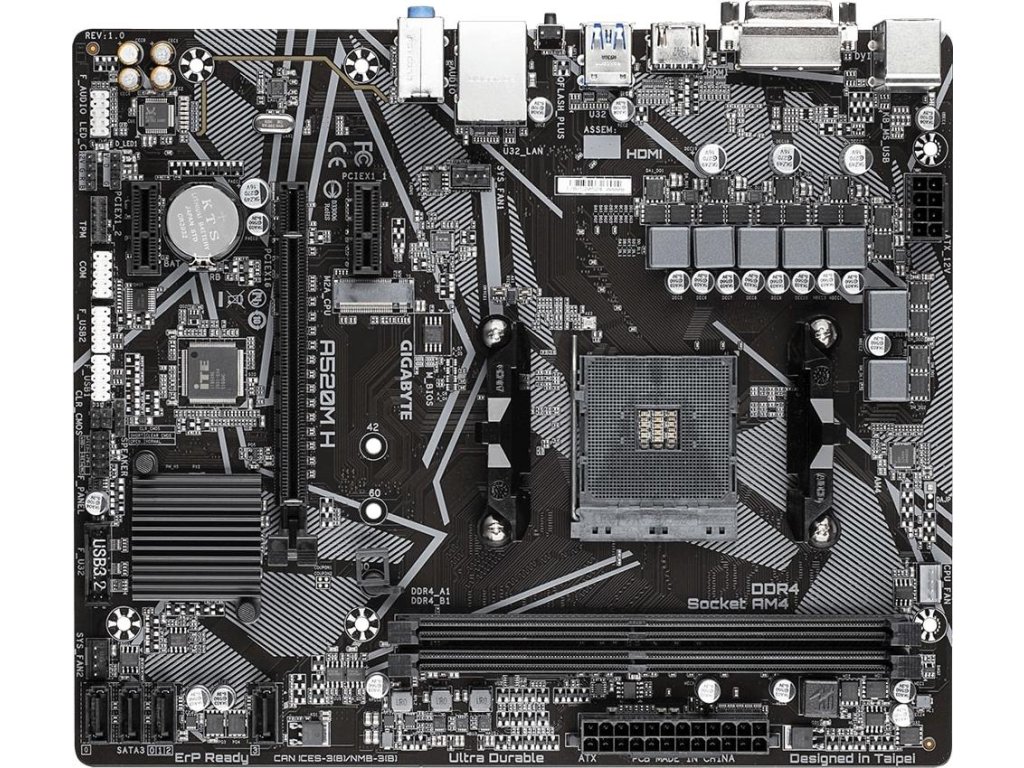

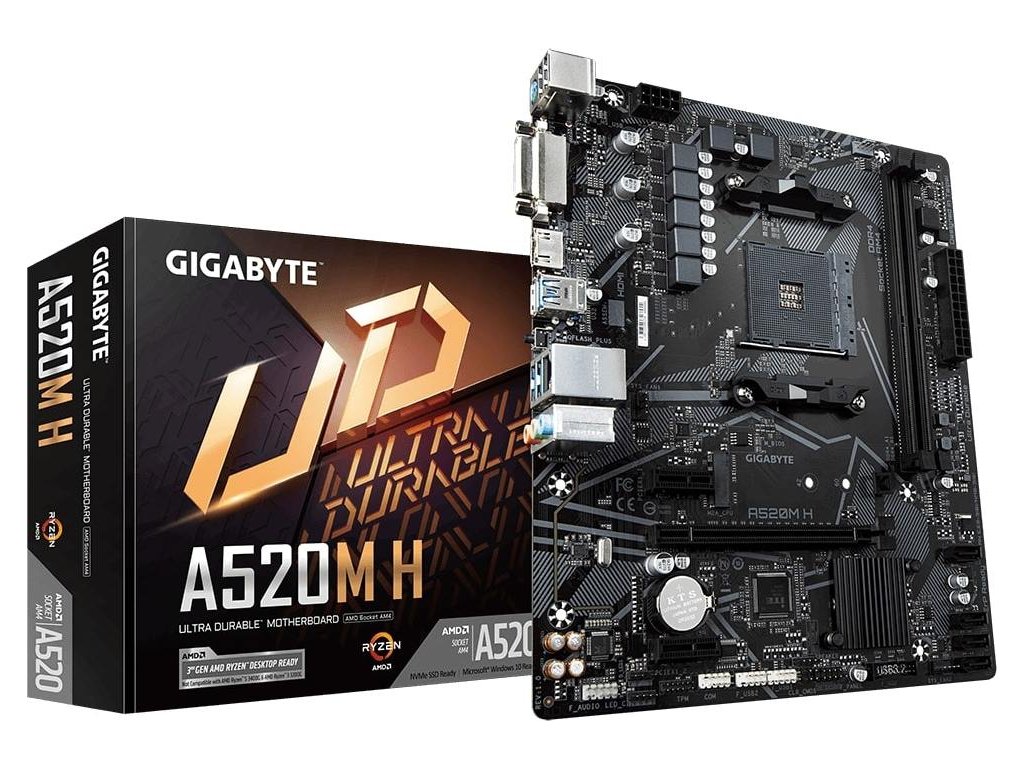

GIGABYTE MB Sc AM4 A520M H, AMD A520, 2xDDR4, 1xHDMI, 1xDVI, mATX

Podrobný popis

Chipset: AMD A520

Rozměrový formát: Micro ATX Form Factor (244 mm x 205 mm)

Podpora pro procesory: Support for 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

Patice procesoru: AM4

Pozice na paměti: 2x DDR4 DIMM

Podpora pro paměti:

*3rd Gen AMD Ryzen™ Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

*3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Max.velikost operační paměti: 64 GB

Podpora pro paměti typu: DDR4 (Dual Channel)

*ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

*non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

*Extreme Memory Profile (XMP) memory modules

Grafické výstupy: Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (na základě CPU)

Zvuková karta:

*Realtek® ALC887 codec

Síťová karta:

*Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Rozšiřující sloty:

*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

*2x PCI Express x1 slots, supporting PCIe 3.0

RAID řadič: 0, 1, 10

SATA:

*4x SATA 6Gb/s connectors

M.2:

*1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

USB:

*zadní USB porty (celkem 6)

*4x USB 3.2 Gen 1 ports

*2x USB 2.0/1.1 ports

*přední USB porty (celkem 6)

*2x USB 3.2 Gen 1 ports

*4x USB 2.0/1.1 ports

Interní porty:

*1x 24-pin ATX main power connector

*1x 8-pin ATX 12V power connector

*1x CPU fan header

*2x system fan headers

*1x addressable LED strip header

*1x RGB LED strip header

*1x M.2 Socket 3 connector

*4x SATA 6Gb/s connectors

*1x front panel header

*1x front panel audio header

*1x speaker header

*1x USB 3.2 Gen 1 header

*2x USB 2.0/1.1 headers

*1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

*1x serial port header

*1x chassis intrusion header

*1x Clear CMOS jumper

Externí porty:

*1x PS/2 keyboard/mouse port

*1x DVI-D port

*1x HDMI port

*4x USB 3.2 Gen 1 ports

*2x USB 2.0/1.1 ports

*1x Q-Flash Plus button

*1x RJ-45 port

*3x audio jacks

BIOS: 1x 128 Mbit flash

Stránka výrobce: https://www.gigabyte.com/Motherboard/A520M-H-rev-10
