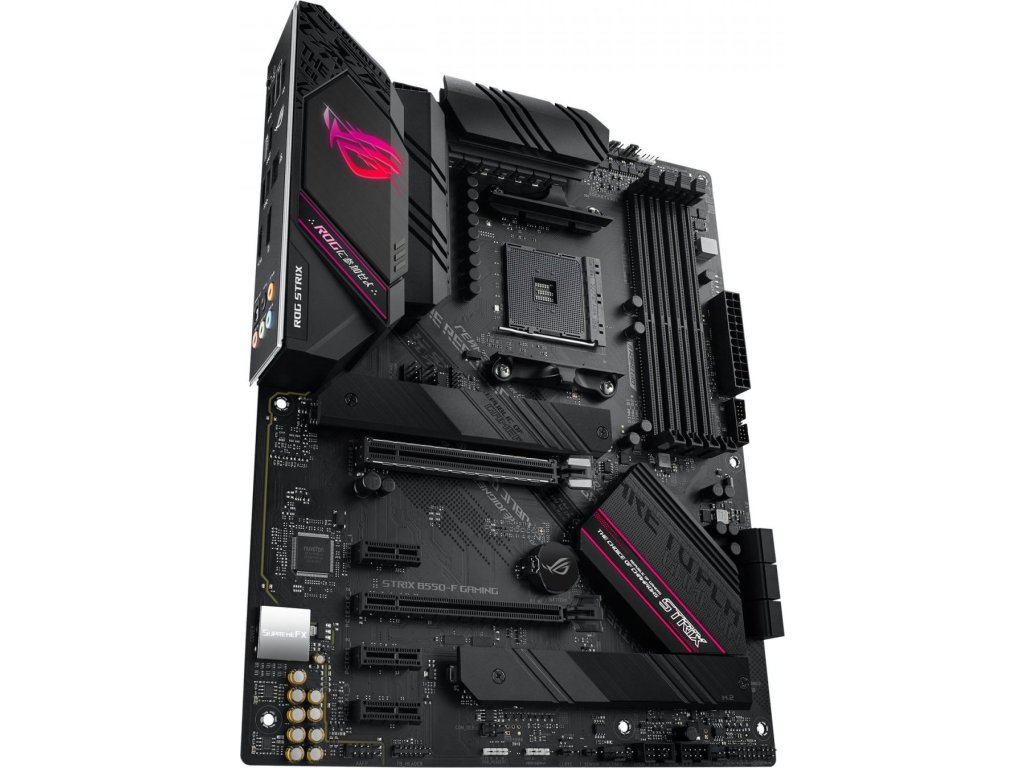

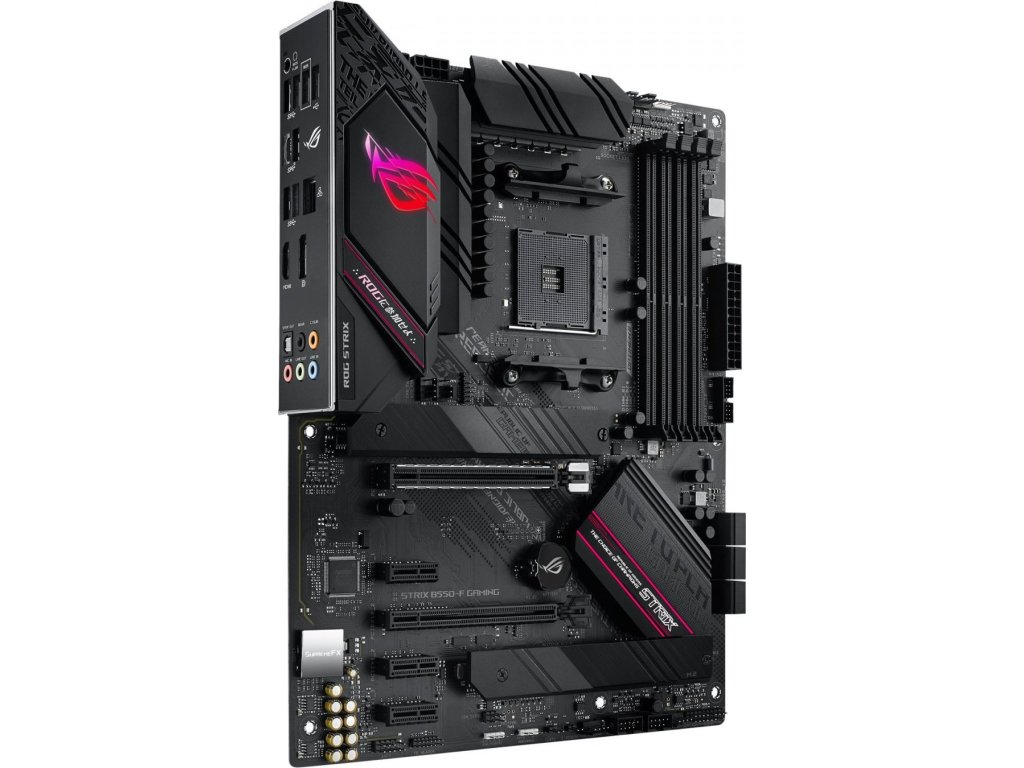

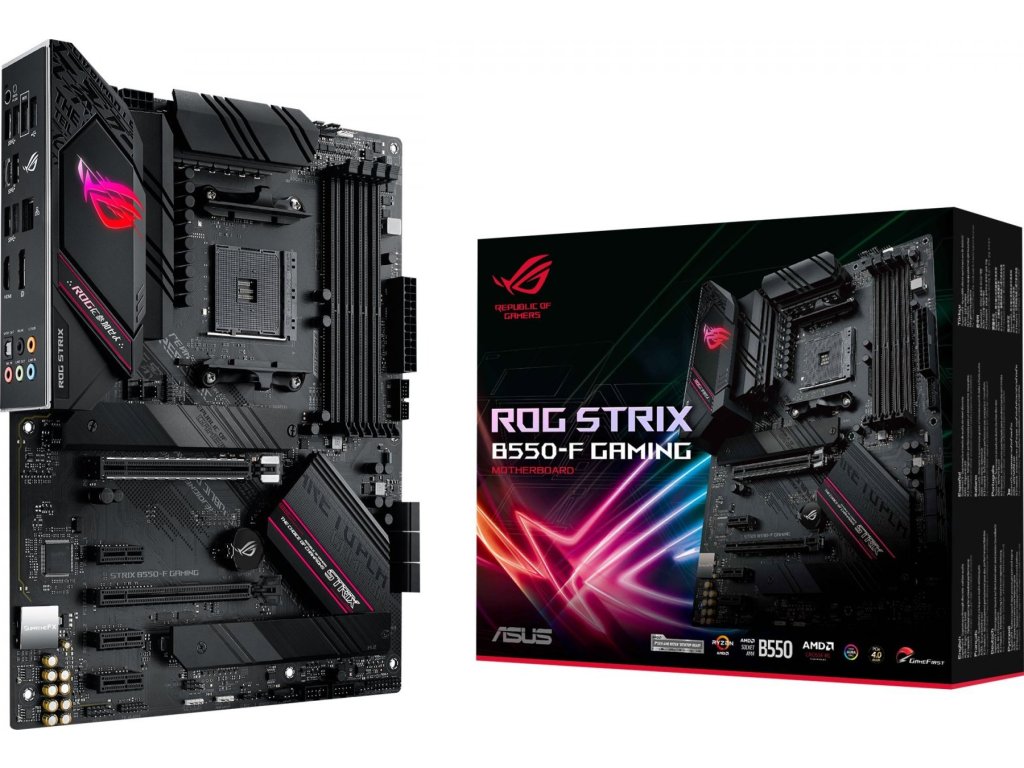

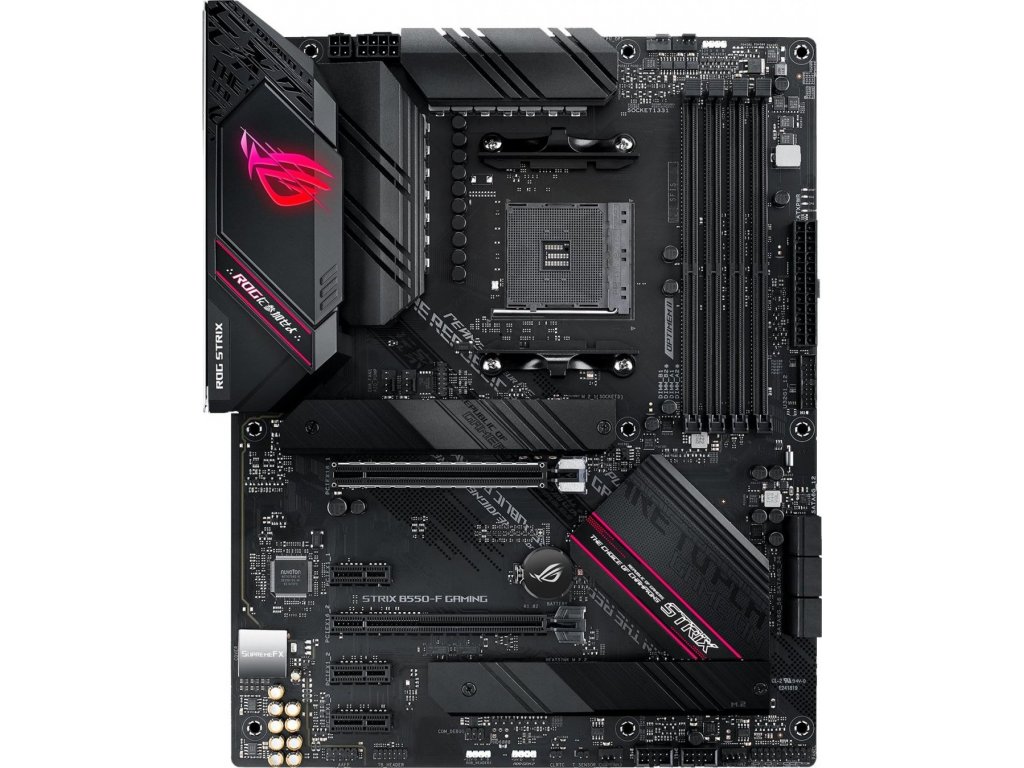

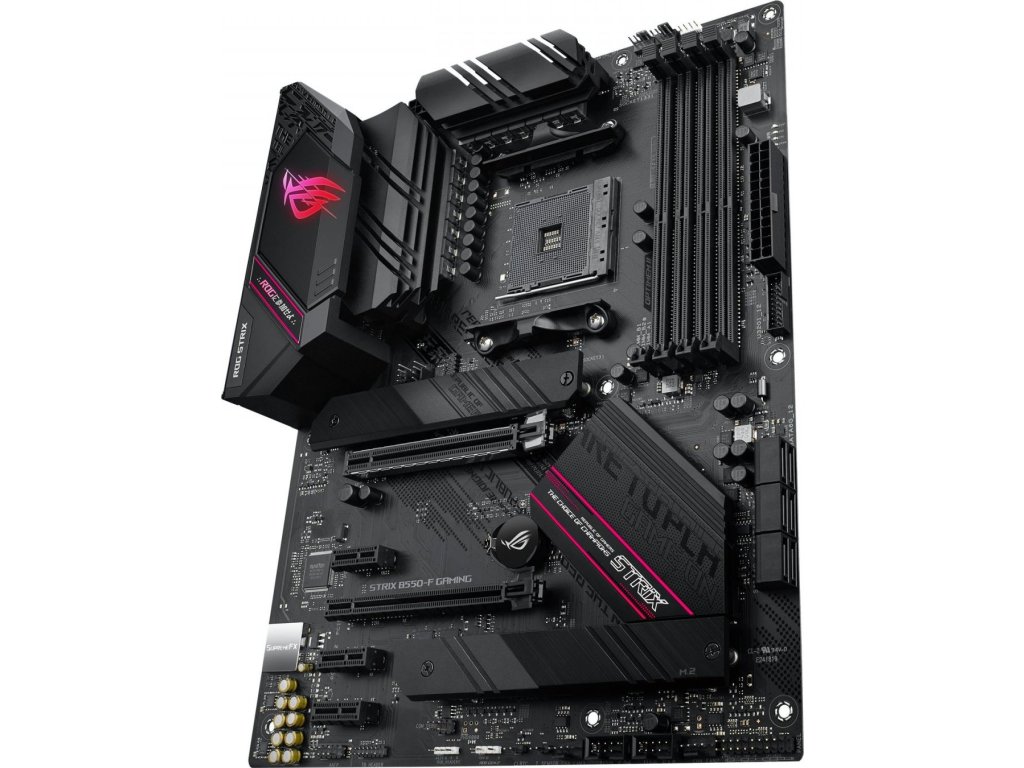

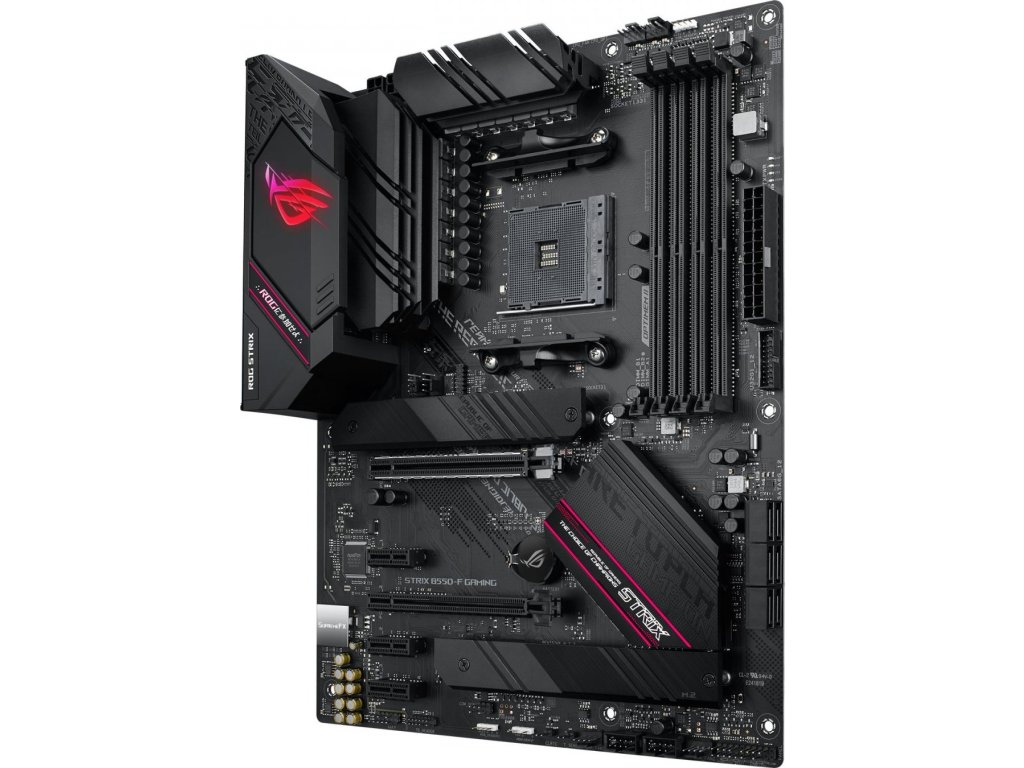

ASUS MB Sc AM4 ROG STRIX B550-F GAMING, AMD B550, 4xDDR4, 1xDP, 1xHDMI

Podrobný popis

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti:

*3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

*Next Generation AMD Ryzen PRO Processors - 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

*Dual Channel Memory Architecture

*OptiMem II

*ECC Memory (ECC mode) support varies by CPU

Grafické výstupy: Integrated Graphics Processor (na základě procesoru)

*1x DisplayPort 1.2

*1x HDMI 2.1(4K@60HZ)

Multi GPU:

*AMD 2-Way CrossFireX Technology

Zvuková karta:

*ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Síťová karta:

*Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard)

Rozšiřující sloty:

*1x PCIe 4.0 x16 (x16 mode)

*1x PCIe 3.0 x16 (x4 mode)

*3x PCIe 3.0 x1

RAID řadič: 0, 1, 10

SATA:

*6x SATA 6Gb/s port(s)

M.2:

*1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

*1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

*zadní USB porty ( celkem 8 )

*2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

*4x USB 3.2 Gen 1 port(s)(4 x Type-A)

*2x USB 2.0 port(s)

*přední USB porty ( celkem 6 )

*2x USB 3.2 Gen 1 port(s)

*4x USB 2.0 port(s)

Interní porty:

*1x CPU Fan connector(s)

*1x CPU OPT Fan connector(s)

*3x Chassis Fan connector(s)

*1x AIO_PUMP connector

*1x AAFP connector

*2x Aura RGB Strip Header(s)

*1x Addressable Gen 2 header(s)

*1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

*2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

*1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

*1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

*6x SATA 6Gb/s connector(s)

*1x Thunderbolt header(s)

*1x 24-pin EATX Power connector(s)

*1x 8-pin ATX 12V Power connector(s)

*1x 4-pin ATX 12V Power connector(s)

*1x System panel(s)

*1x Thermal sensor connector(s)

*1x Clear CMOS jumper(s)

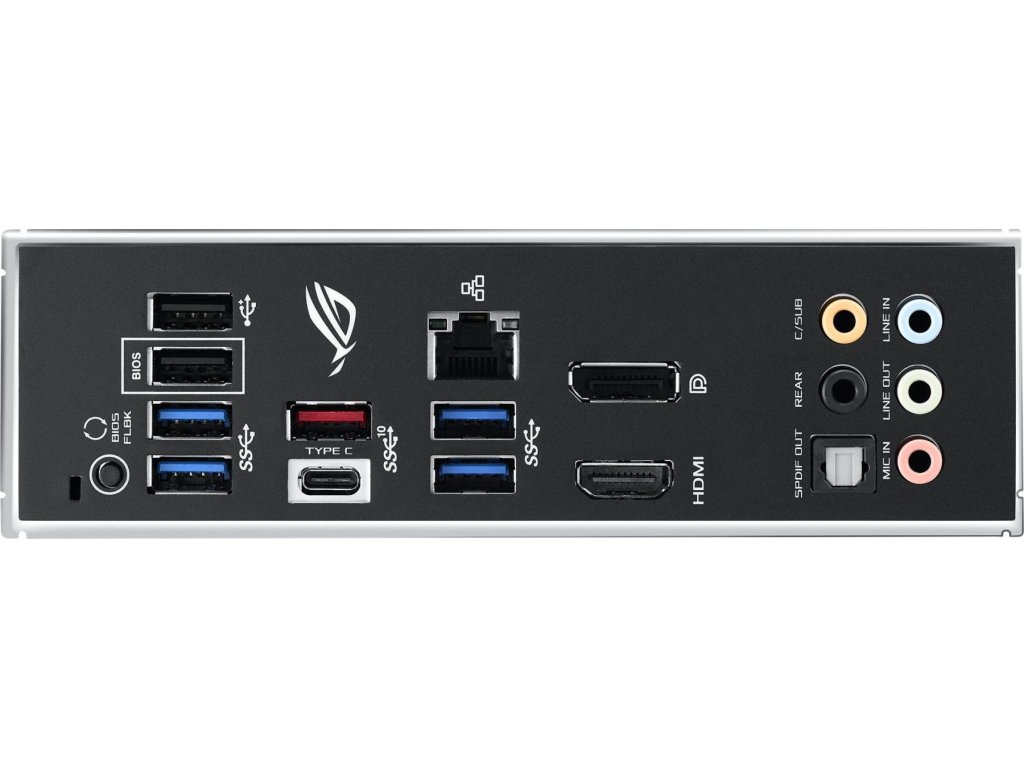

Externí porty:

*1x Intel® I225-V 2.5Gb Ethernet

*1x DisplayPort

*1x HDMI

*2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)

*4x USB 3.2 Gen 1

*2x USB 2.0

*1x Optical S/PDIF out

*1x BIOS FlashBack™ Button(s)

*5x Gold-plated audio jacks

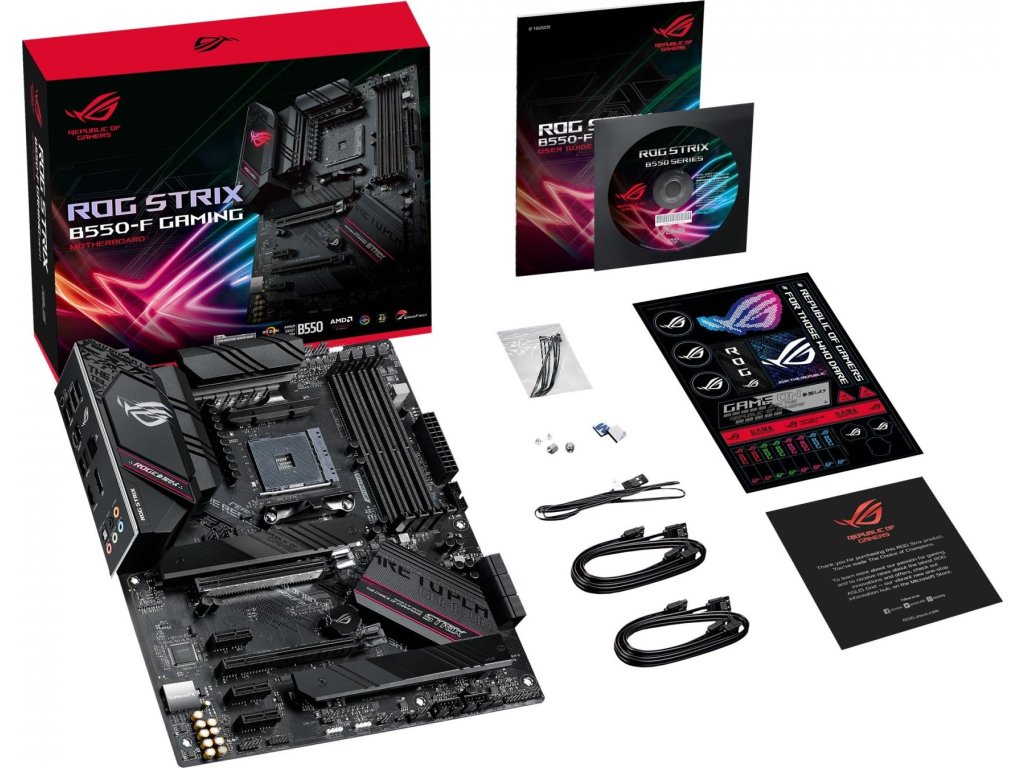

Obsah balení:

*User's manual

*4x SATA 6Gb/s cable(s)

*1x Supporting DVD

*1x ROG Strix stickers

*1x Cable ties pack(s)

*1x Extension cable for Addressable LED

*1x ROG Thank you card

*1x M.2 SSD screw package(s)

*1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
