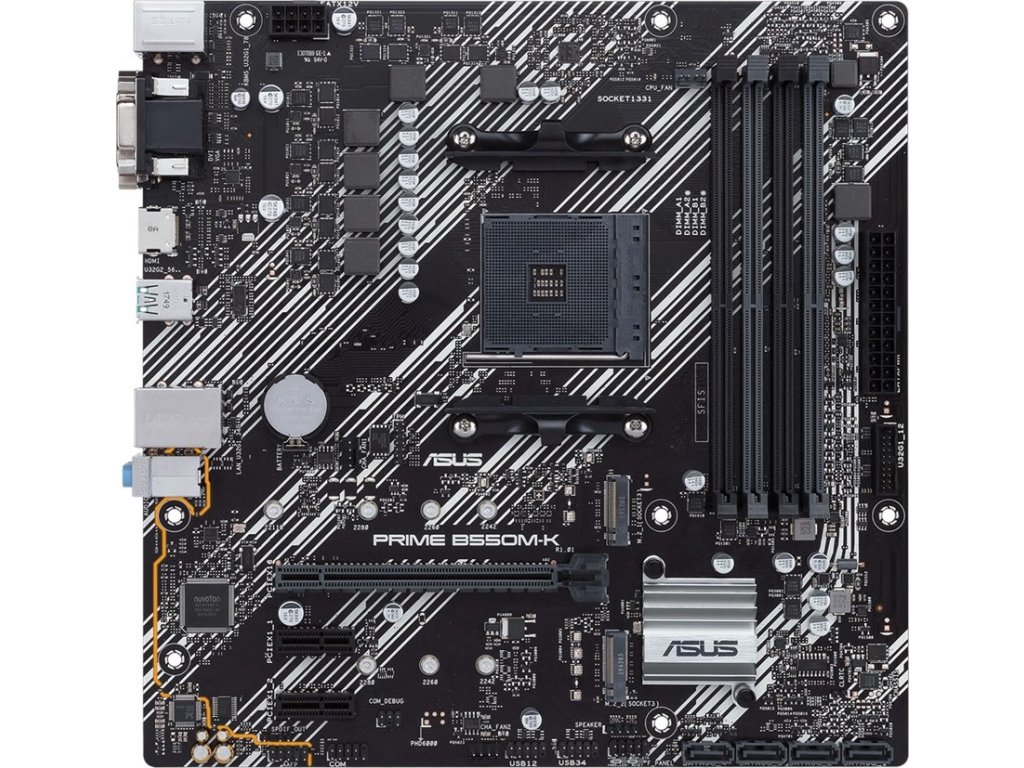

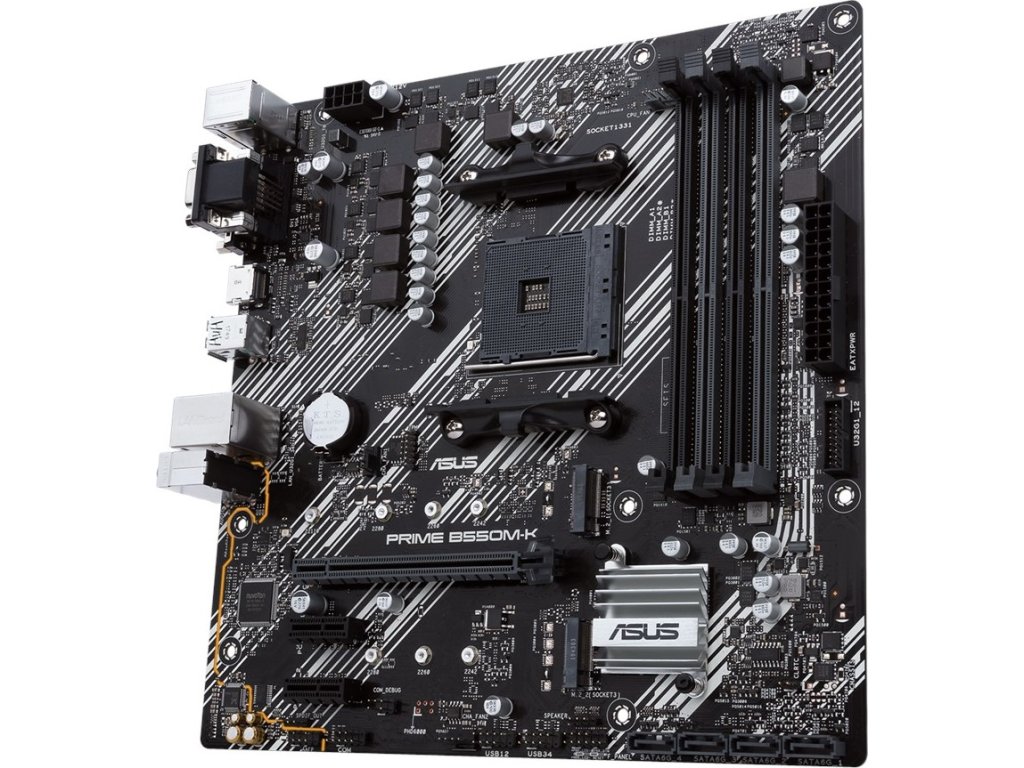

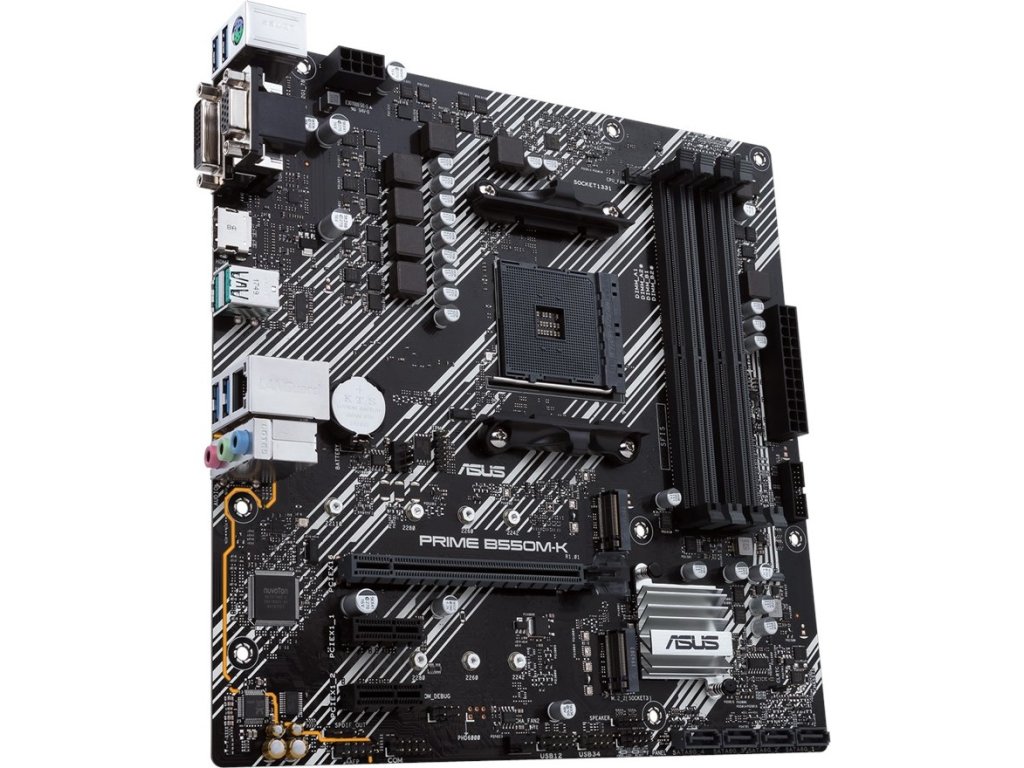

ASUS MB Sc AM4 PRIME B550M-K, AMD B550, 4xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX

Podrobný popis

Chipset: AMD B550

Rozměrový formát: mATX Form Factor (244 mm x 244 mm)

Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM

Podpora pro paměti:

*3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

*Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB

Podpora pro paměti typu: DDR4

*Dual Channel Memory Architecture

*ECC Memory (ECC mode) support varies by CPU

Grafické výstupy: (na základě procesoru)

*1x D-Sub

*1x DVI-D

*1x HDMI 2.1(4K@60HZ)

Zvuková karta:

*Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

*Realtek RTL8111H 1Gb Ethernet

Rozšiřující sloty:

*1x PCIe 4.0 x16 (x16 mode)

*2x PCIe 3.0 x1

RAID řadič: 0, 1, 10

SATA:

*4x SATA 6Gb/s ports

M.2:

*1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

*1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:

*zadní USB porty ( celkem 6 )

*2x USB 3.2 Gen 2 port(s)(2 x Type-A)

*4x USB 3.2 Gen 1 port(s)(4 x Type-A)

*přední USB porty ( celkem 6 )

*2x USB 3.2 Gen 1 port(s)(2 x Type-A)

*4x USB 2.0 port(s)(4 x Type-A)

Interní porty:

*1x CPU Fan connector(s)

*2x Chassis Fan connector(s)

*1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

*2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

*1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

*1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

*1x SPI TPM header

*4x SATA 6Gb/s connector(s)

*1x S/PDIF out header(s)

*1x 24-pin EATX Power connector(s)

*1x 8-pin EATX 12V Power connectors

*1x Front panel audio connector(s) (AAFP)

*1x Clear CMOS jumper(s)

*1x System panel connector

*1x COM port header

*1x Speaker connector

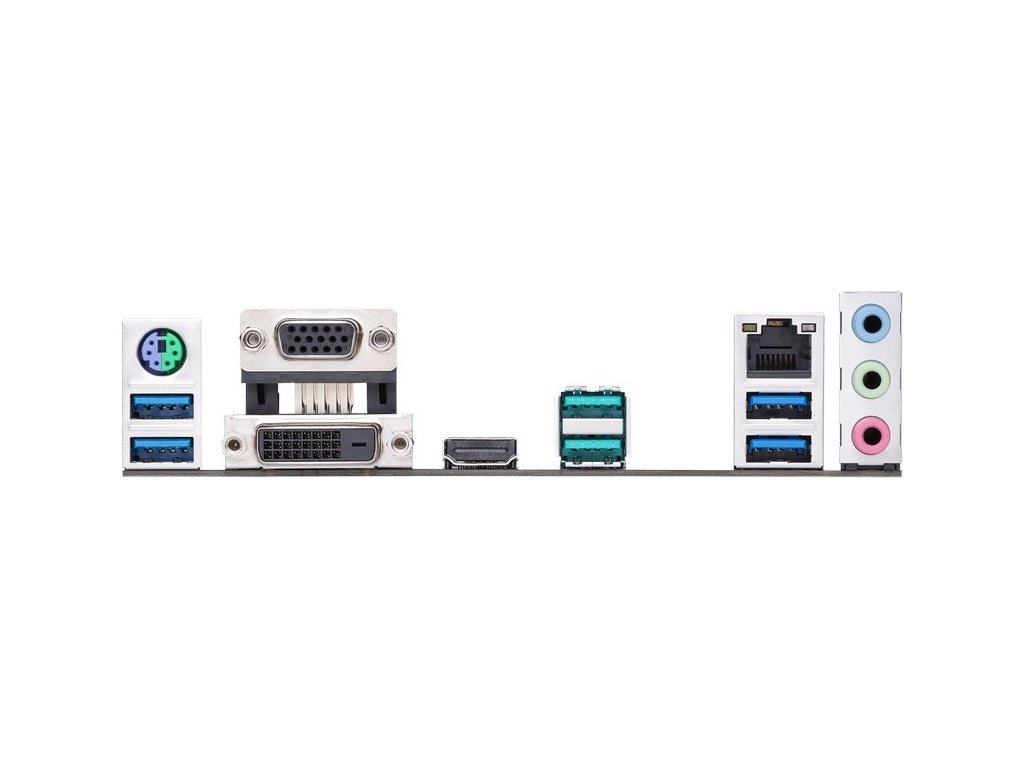

Externí porty:

*1x PS/2 keyboard/mouse combo port(s)

*1x DVI-D

*1x D-Sub

*1x HDMI

*1x LAN (RJ45) port(s)

*2x USB 3.2 Gen 2 (teal blue) (2 x Type-A)

*4x USB 3.2 Gen 1 (blue) Type-A

*3x Audio jack(s)

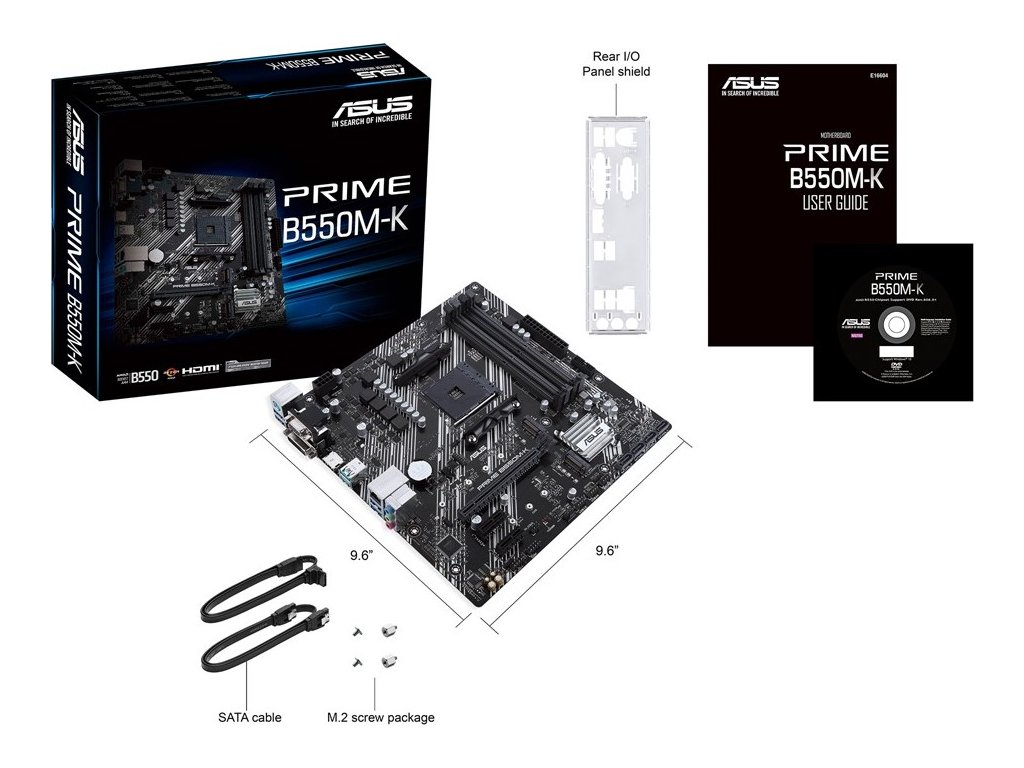

Obsah balení:

*User's manual

*I/O Shield

*2x SATA 6Gb/s cable(s)

*1x Supporting DVD

*1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards/PRIME-B550M-K

https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/

https://www.asus.com/support/FAQ/1046215
