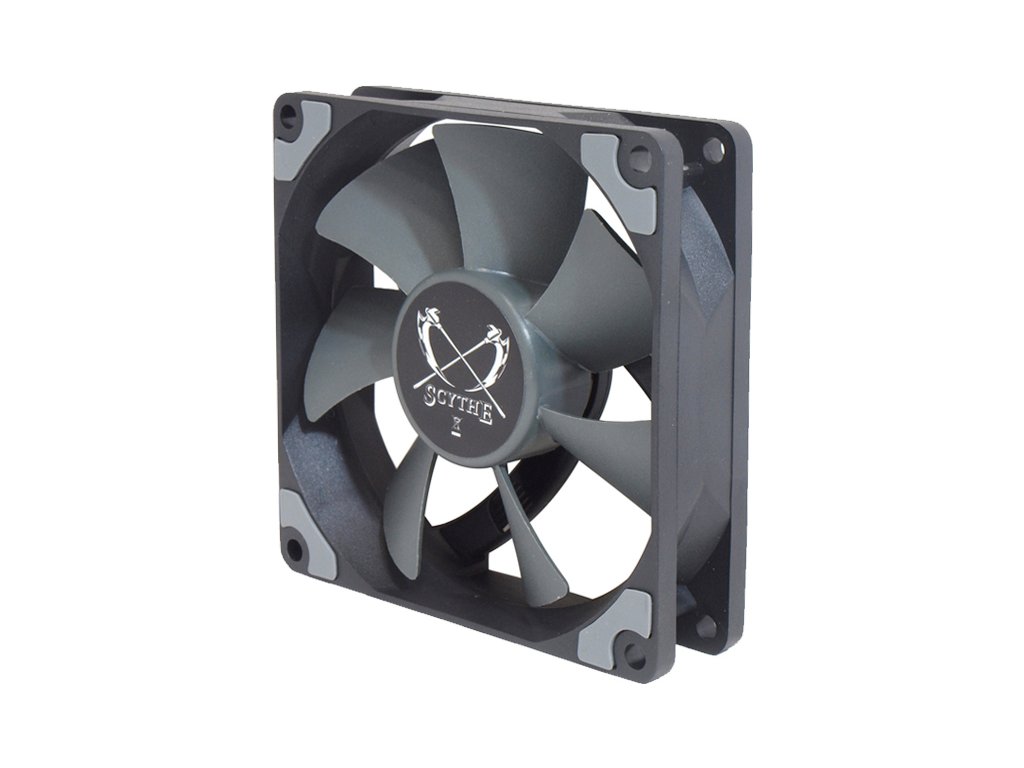

SCYTHE KF9225FD23-P Kaze Flex 92mm PWM 300-2300rpm

Podrobný popis

KAZE-FLEX 92mm PWM

Model number: KF9225FD23-P / JAN: 4571225057477

92mm case fan "KAZE FLEX" normal model

· Uses a high-density sealed FDB (Sealed Precision FDB) with long life

-92mm case fan "KAZE FLEX"

Sealed Precision FDB

· Highly oil-retaining ability that suppresses volatilization and leakage due to the completely sealed bearing structure with the oil-filled cap removed.

· The fluid bearing structure that stores oil in the space between the rotating shaft and the bearing provides a high lubrication effect and quietness. The bearing uses a high-strength and high-durability high alloy to achieve low friction and long life.

· Uses high-quality lubricating oil that can withstand high temperatures of 200-250C

Shock absorbing rubber pad

-Excellent vibration absorption and fan stability.

Extender cable specifications

· The fan cable is usually 30 cm. Can be extended up to 50 cm with an extension cable

Accessories

-Fan extender cable, mounting screws

Package

· 100 (W) × 170 (H) × 28 ( D) mm · 130 g

92mm case fan "KAZE FLEX"

Variable PWM / 2300 rpm

Sealed Precision FDB

Adopts a completely sealed bearing structure that eliminates the oil-sealed cap.

This realizes a high holding capacity that minimizes oil volatilization and leakage

Oil in the space between the rotating shaft and the bearing Highly effective lubrication and quietness are achieved by the fluid bearing structure that stores water. By using a

high alloy with high strength and durability in the bearing part, low friction and long life are realized.

Uses oil.

Shock absorption rubber pad

By adopting "shock absorption rubber pad", it has excellent vibration absorption and fan stability.

Long life

MTBF 120,000 hours long life under 25 ? environment

Extender cable specifications The

fan cable is normally 30 cm, and can be

extended to 50 cm with the extension cable (RGB cable cannot be extended to 50 cm)

Accessories: Extender cable for fan, mounting screw

4-pin PWM connection automatically changes fan speed

92 x 92 x 26 mm thick, without ribs

Package size / weight: 100 (W) × 170 (H) × 28 (D) mm · 130 g

RoHS compliant eco-friendly product

Model number KF9225FD23-P

JAN 4571225057477

size 92 x 92 x 26 mm thick

Speed ??(variable PWM) 300 (± 200) ~ 2300 rpm (± 10%)

Noise / air volume 7.3 ~ 28.83 dBA / 6.75 ~ 48.88 CFM

Static pressure 00.8 ~ 2.03 mmH2O / 7.85 ~ 19.91 Pa

Rated current 0.2 A

Drive voltage 12 VDC

rib None

weight 90 g

Fan connection PWM 4 pin

cable length Fan cable 30cm (extendable to 50cm)

bearing Sealed Precision FDB

MTBF 120,000 hours (25C)
