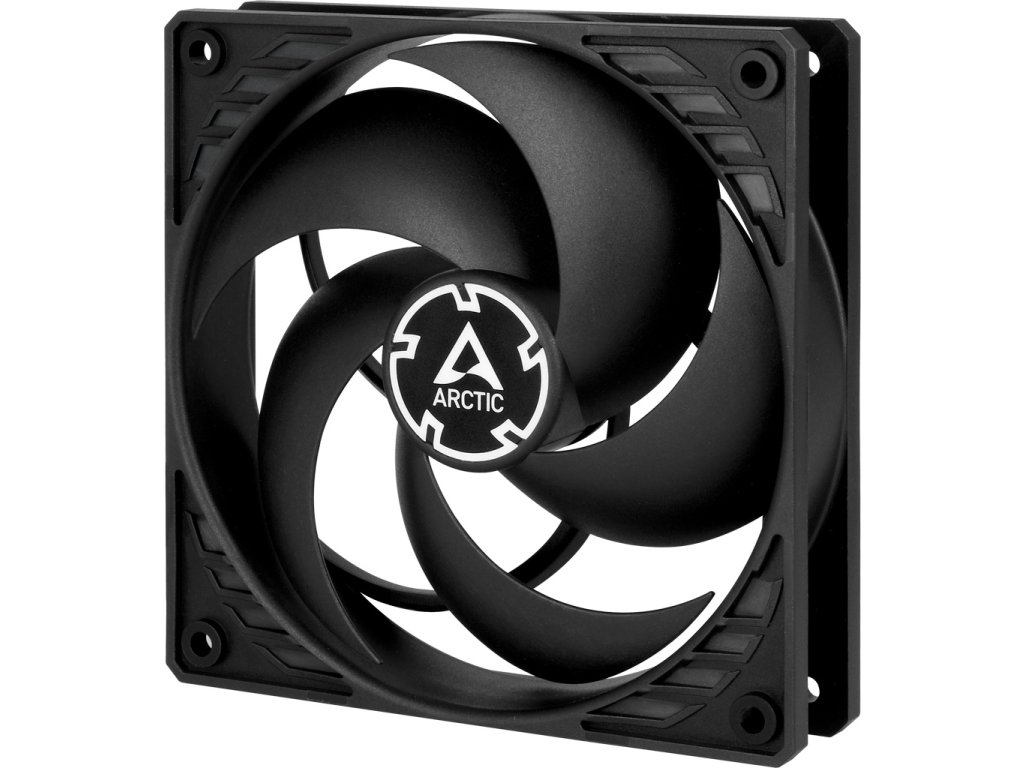

ARCTIC P12 TC (black/black) - 120mm case fan with temperature control

Podrobný popis

P12 TC - 120mm větráček s teplotní kontrolou a optimalizací na tlak, rozměr 120x120x25mm, otáčky 350 - 1800 rpm, průtok vzduchu 56.3 CFM/ 95.7 m3/h, statický tlak 2,20 (mm/H2O), hlučnost 0.3 Sone, 3pin konektor

P12 TC - Pressure-optimised 120 mm Fan with Temperature Control

OPTIMISED FOR STATIC PRESSURE

During the development of the new P12 TC, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 TC is particularly suitable for use on heatsinks and radiators.

MAXIMUM QUIETNESS, MINIMUM VIBRATION

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

HIGH QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

IDEAL TEMPERATURE CONTROL

The temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side this fan keeps the noise level absolutely minimal and only increases the speed if necessary.

TECHNICAL SPECIFICATIONS:

General data

Performance

Fan Speed: 350 - 1800 rpm

Airflow: 56.3 CFM/ 95.7 m3/h

Static Pressure: 2,20 (mm/H2O)

Noise Level: 0.3 Sone

Fan

Fan Frame: Standard

Controll Type: Temperature Control

Connector: 3-Pin-Connector

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC

Starting Voltage: 2.4 V

Current: 0.08 A

Cable Lenght: 400 mm

Size & Weight

Lenght: 120 mm

Width: 120 mm

Height: 25 mm

Weight: 139 g
