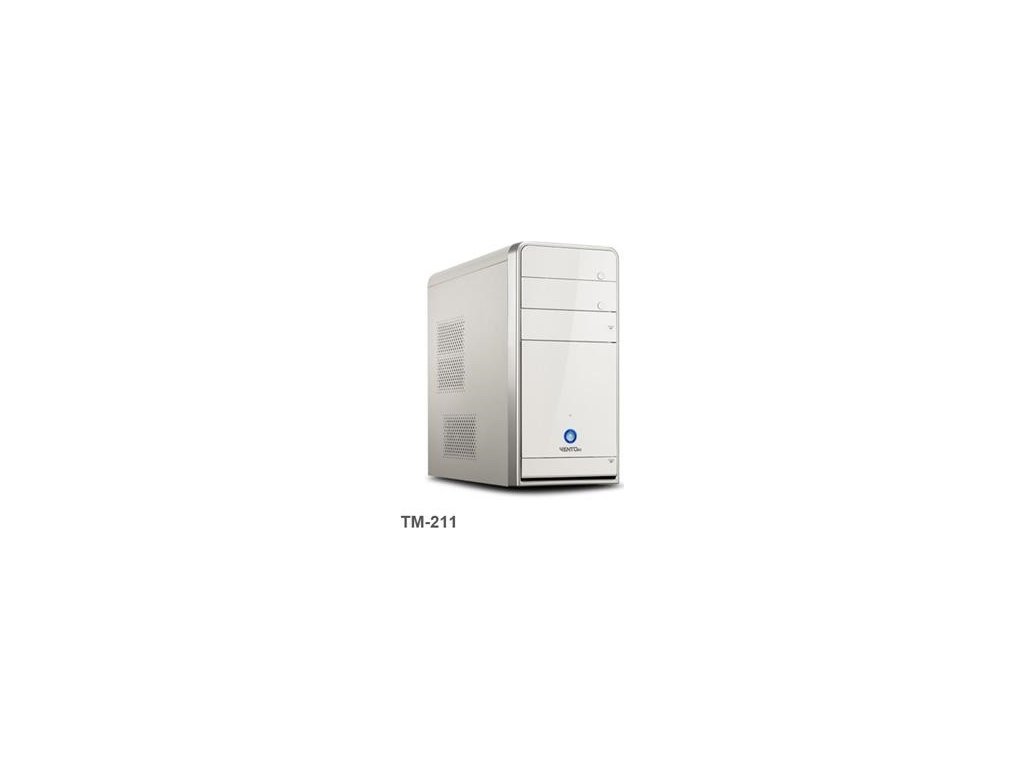

ACUTAKE VENTO TM211 Second Edition

Podrobný popis

Nová vylepšená verze s nejnovějším HDaudio či USB 2.0.

Stylish Bezel

5.25" external bay tray in-out structure

3.5" external bay and front I/O coveredŁ

Snap on/off solution for quick installation

Multi-color power LED as HDD runs

Flexible Front I/O Option

Back window with COM2 and key lock support

Optional front I/O for USB and IEEE1394

Support up to the latest and most powerful processing platform from Intel and AMD

Optional fan for upgraded ventilation

Excellent cooling system with room for expansion

2 new side venting areas dedicated for CPU and AGP in support of enhanced heat dissipation

Solid Mechanical Construction

Full EMI features prevent radiation emission

Friendly design for fast assembly/maintenance

C-curve design enhances mechanical strength and eliminates sharp edges

Folded edge for safe device installation

Space saving

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

PCB color and bundled software versions are subject to change without notice.

Brand and product names mentioned are trademarks of their respective companies.

Specification

Dimension w/Bezel (W x H x D) 170 x 355 x 395 mm

Case Size MicroATX Mini Tower

Interface 0.6mm SGCC

MB Form Factor Standard MicroATX

Drive Bays 5.25" Ext Bay x 2

3.5" Ext Bay x 2

3.5" Int Bay x 3

System Fan (mm) Support Front: 80 x 1

Rear: 92 x 1 or 80 x 1

Expansion Slots 4

Weight N.W. 4.3 kg

G.W. 5.2 kg

Color Options (Front/Band/Side) TM-210 White/Silver/White

TM-211 White/Silver/White

Front I/O Configuration Power Supply Options

PS2 300/350W

Front I/O Options

1) W/ O front I/O

2) W/ USB x 2 + Audio x 2

3) W/ USB x 4 + Audio x 2 + 1394 x1
