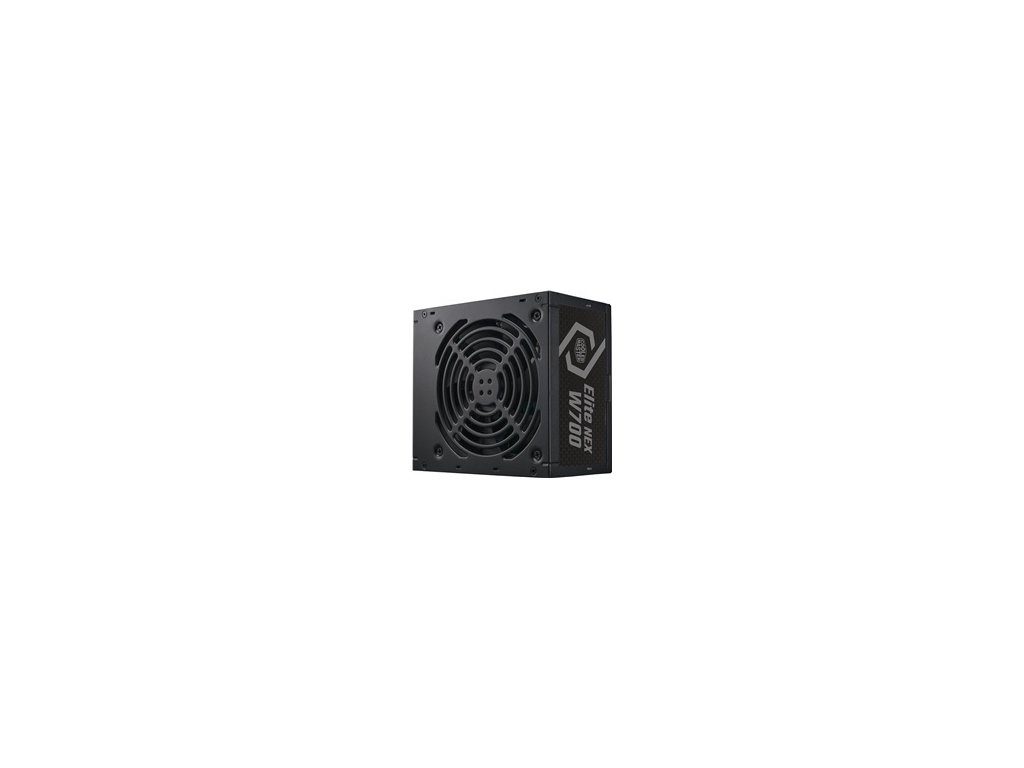

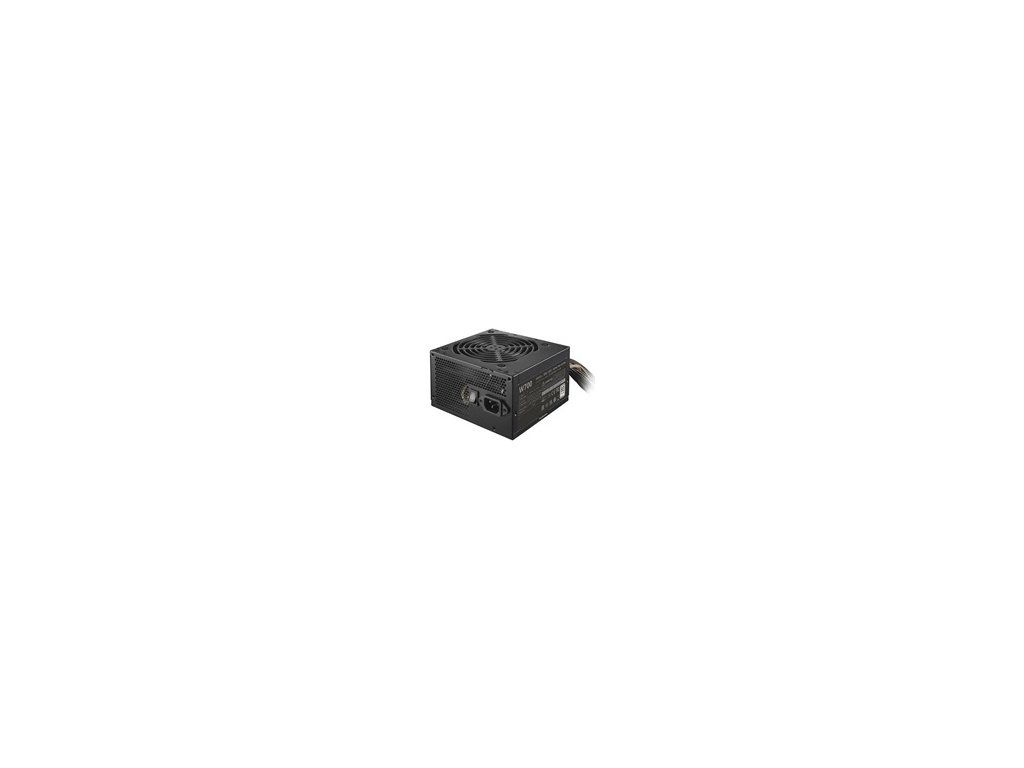

Cooler Master zdroj Elite NEX W700 230V A/EU Cable, 700W

Kód: 1566242

Podrobný popis

ELITE NEX 230V

The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.

  • Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
  • High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
  • Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
  • 80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
  • Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it's high altitudes or ultra humid settings.
  • 3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.

TECHNICAL SPECIFICATIONS

ATX VersionATX12V Rev. 2.41
PFCActive PFC
Input Voltage200 - 240V
Input Current5A
Input Frequency50 - 60Hz
Dimension (L x W x H)140 x 150 x 86mm
Fan Size120mm
Fan BearingSleeve Fan
Efficiency>= 85% @ Typical Load
ERP 2014 LOT 3Yes
Operating Temperature0 - 40°C
Power Good Signal100 - 500 ms
Hold Up Time>= 10ms at 100% Load
MTBF>100,000 hours
ProtectionsOVP / OPP / SCP / UVP / OTP / Inrush Protection
RegulatoryTUV,cTUVus,CE,FCC,CCC,EAC,UKCA
ATX 24-pin Connnectorsx1 = 1x (550mm)
EPS 4+4 Pin & EPS 8Pinx2 = 1x [550(8Pin)+120(4+4Pin)mm]
SATA Connectorsx2 = 1x (400+150mm); x3 = 1x (400+150+150mm)
Peripheral 4-pin Connectorsx3 = 1x (400+150+150mm)
PCI-E 6+2 pin Connectorsx2 = 1x (500+120mm)

Dodatočné parametre

Kategória: 700 W
Záruka: 3 Rok(ů)
Hmotnosť: 1.932 kg
Délka: 19.7 cm
Formát zdroje: ATX
Hmotnosť: 1.932 kg
Konektory: SATA 15-pin
Konektory pro základní desku: EPS 8-pin
Šířka: 25.1 cm
Výkon zdroje (W): 700
Výška: 10 cm
Záruka: 3 Rok(ů)
